| Lens & Housing |
| Lens Color |
Clear |
| Lens Material |
Hard-coated Polycarbonate |
| Housing Color |
Gloss Black |
| Housing Material |
Powder-coated Die-Cast Aluminum |
| Bezel Material |
Powder-coated Die-Cast Aluminum |
| Lighting |

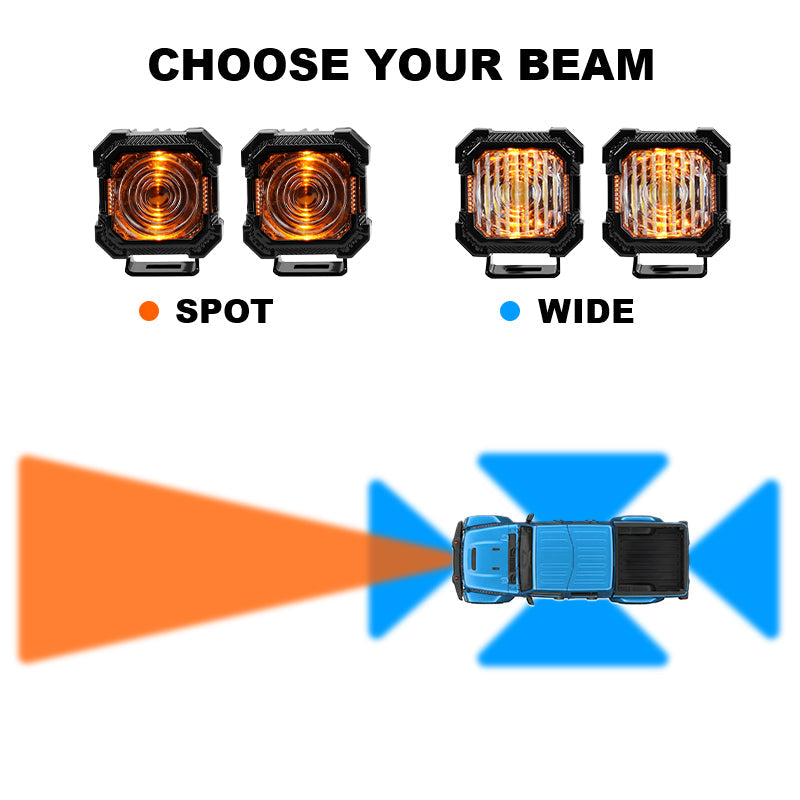

| Modes |
Spot Beam or Wide Beam + Amber Backlight |
| Technology |
LED |
| Projection Type |
Forward Projection |
| Wattage |
Spot: 20W (1.53 A(13V)/ Wide: 20W(1.53 A(13V) |
| Voltage |
12V / 24V |
| Beam Angle |
Spot: 136° / Wide: 143° |
| Lighting Distance |
Spot: 1 lux @ 357 yd / Wide: 1 lux @ 126 yd |

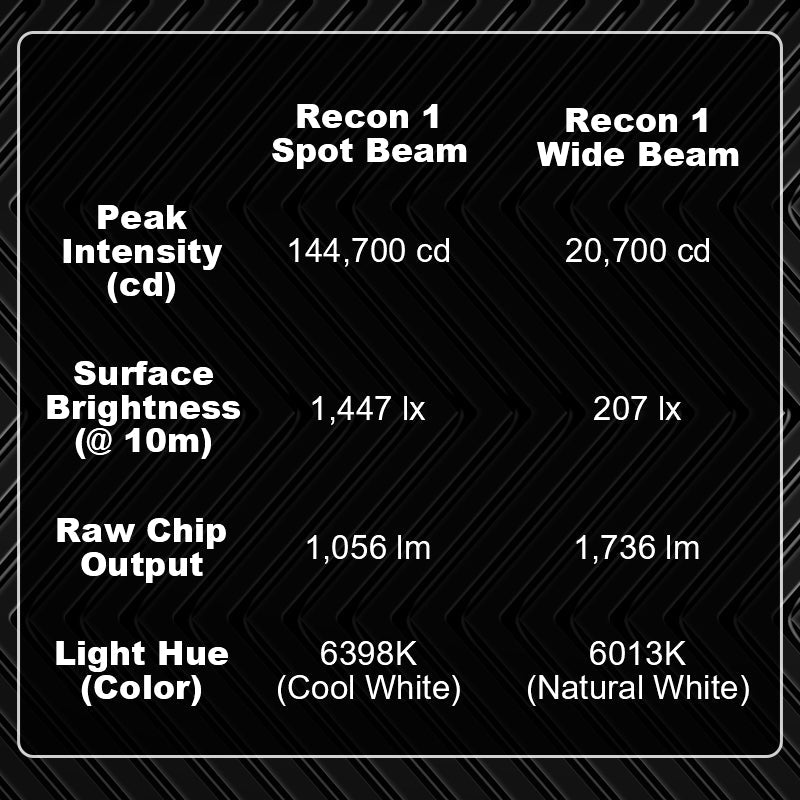

| 10m Lux |
Spot: 1447 lx / Wide: 207 lx |
| Center Intensity |
Spot: 144,700 cd / Wide: 20,700 cd |
| Lumen Output |
Spot: 1056 lm / Wide: 1736 lm |
| Color Temperature |
Spot: 6398K / Wide: 6013K |
| Light Sources |
| Main LEDs |
Spot: Luminus SFT-25R
Wide: Luminus SFT-160FA-W-3570 |
| Main LED Quantity |
1 LED |

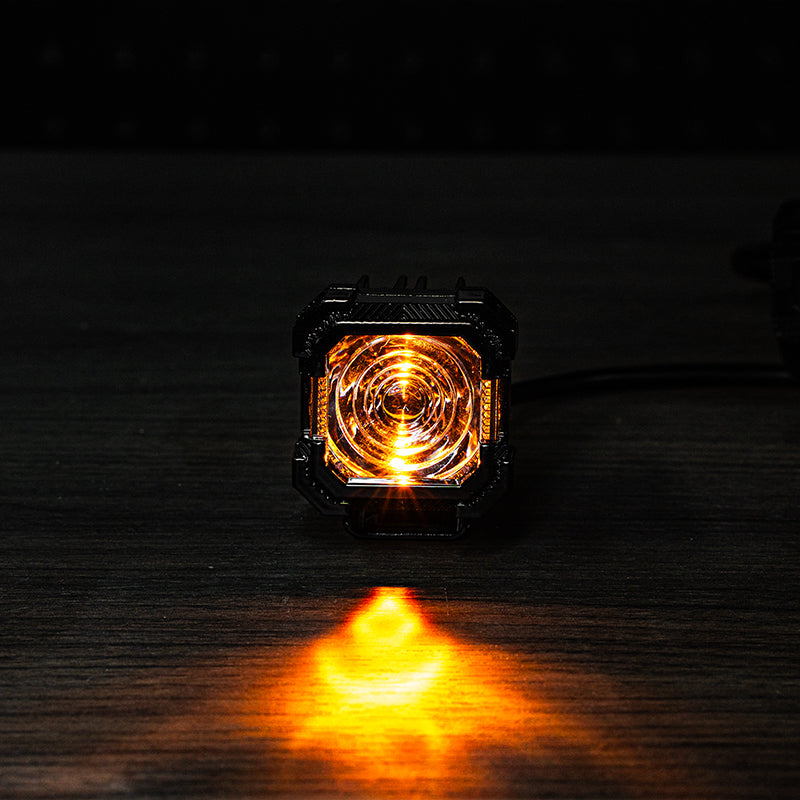

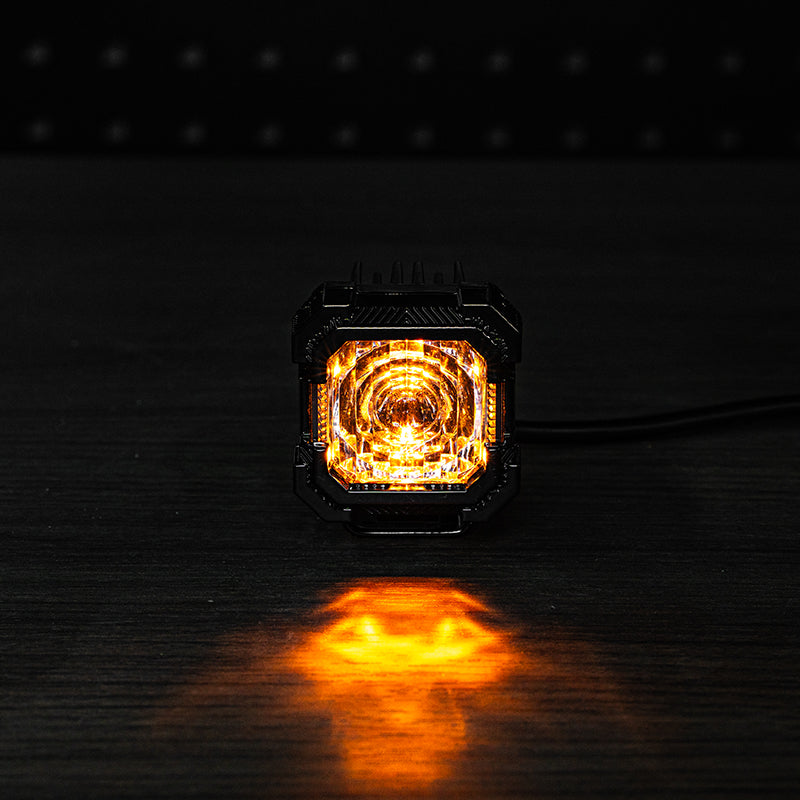

| Backlight LEDs |
2835 Chips, Amber, 2 LEDs, 1660K |
| Electrical |
| Rated Voltage |
12V / 24V |
| Lifespan |
50,000 hours |
| Application |
Universal |
| Mounting & Hardware |
| Mounting Hardware Included |
Yes |
| Hardware Material |
Stainless Steel |
| Brackets |
2 × Gloss Black brackets, includes 8 × M5 hex screws, 2 × M8 carriage bolts, and wrench |
| Wiring Harness |
| Included |
Yes |
| Connector |
DT Plug with mating connector |
| Length |
9.8 ft (3 m) |
| Material |
Silicone Wire |
| Specs |
Dual-output harness, 18 AWG main wires, 12V/40A relay, 10A fuse, 16 AWG branch wires, rocker switch with insulated leads |

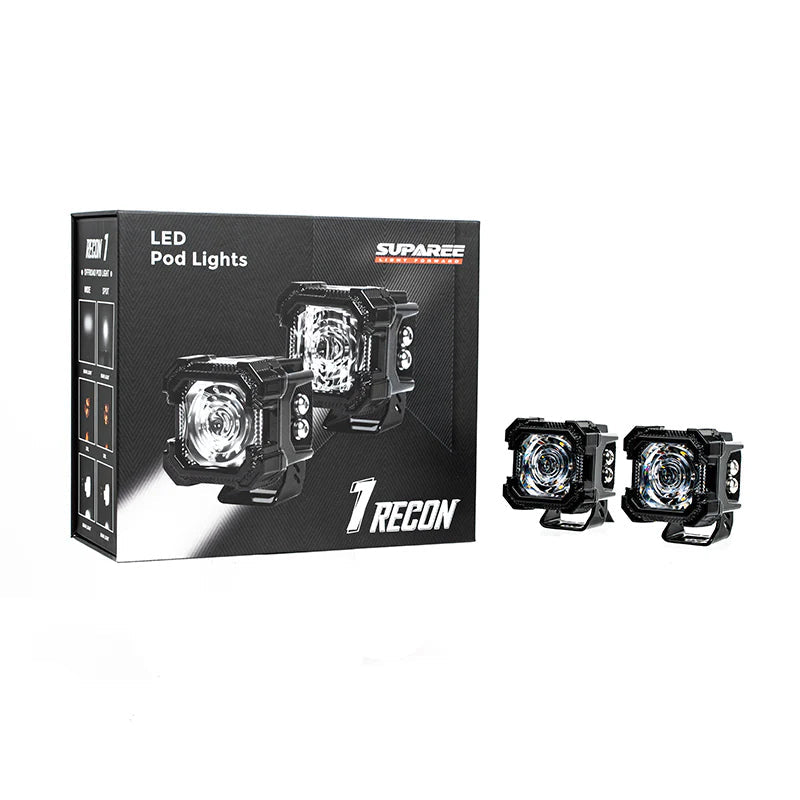

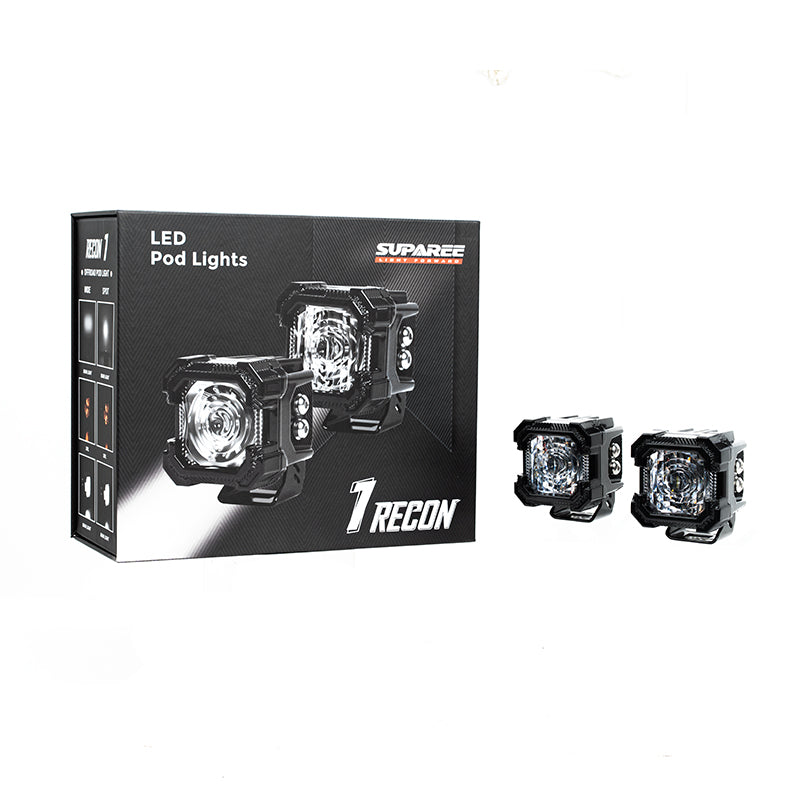

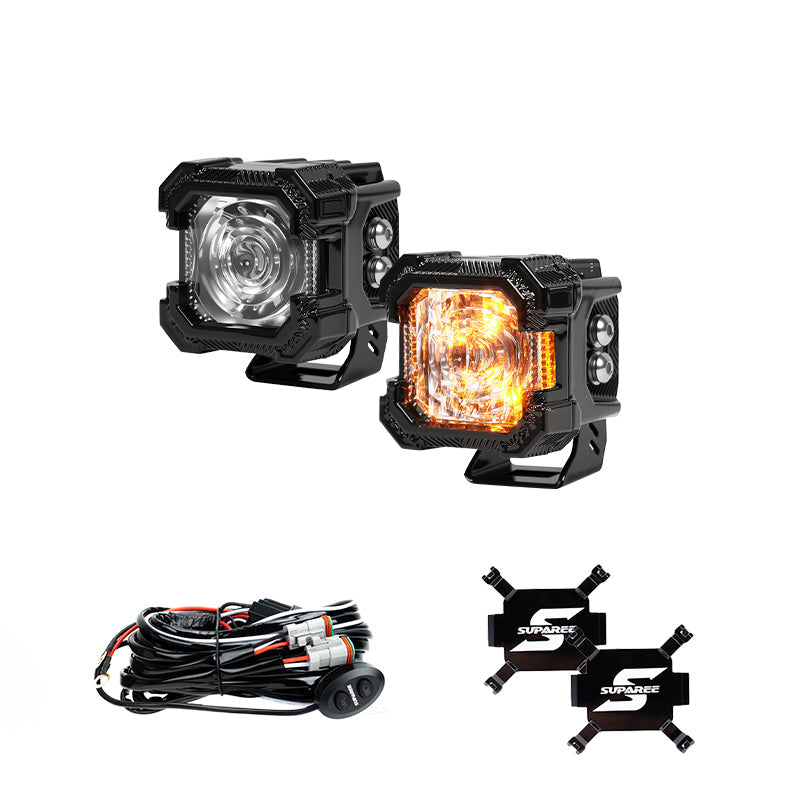

| Package Contents |

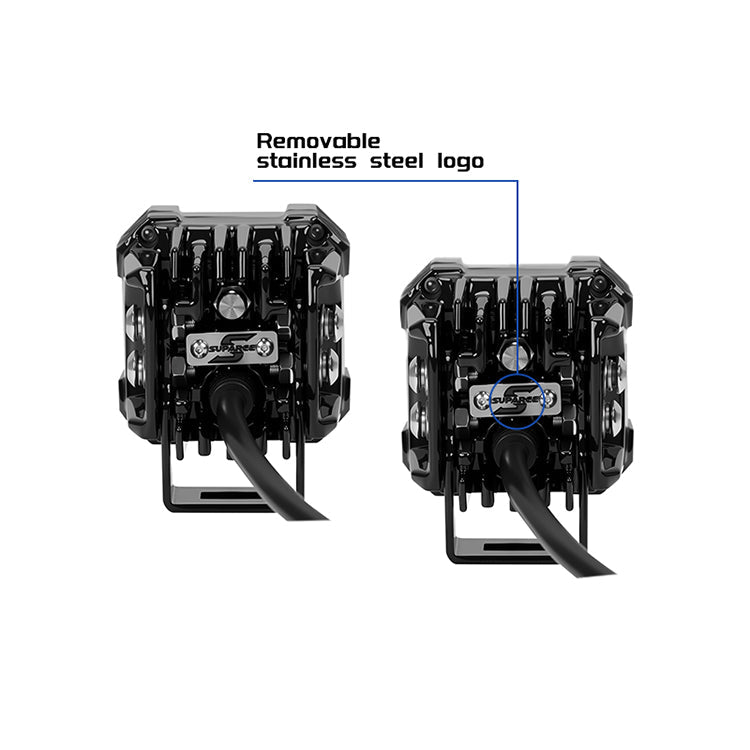

• 2 × Lamp Bodies (with detachable stainless steel badge)
• 2 × Black Covers
• 2 × Stainless Steel Brackets + full hardware (M5 screws, M8 carriage bolts, wrench)
• 1 × Dual-output Wiring Harness (3 m)
• 1 × Inner Packaging with foam
• 1 × Outer Packaging Box
• 1 × User Manual
• 2 x Pigtail wire |
